DR3038
DR3038
down light spot light
DR3038
Model: DR3038

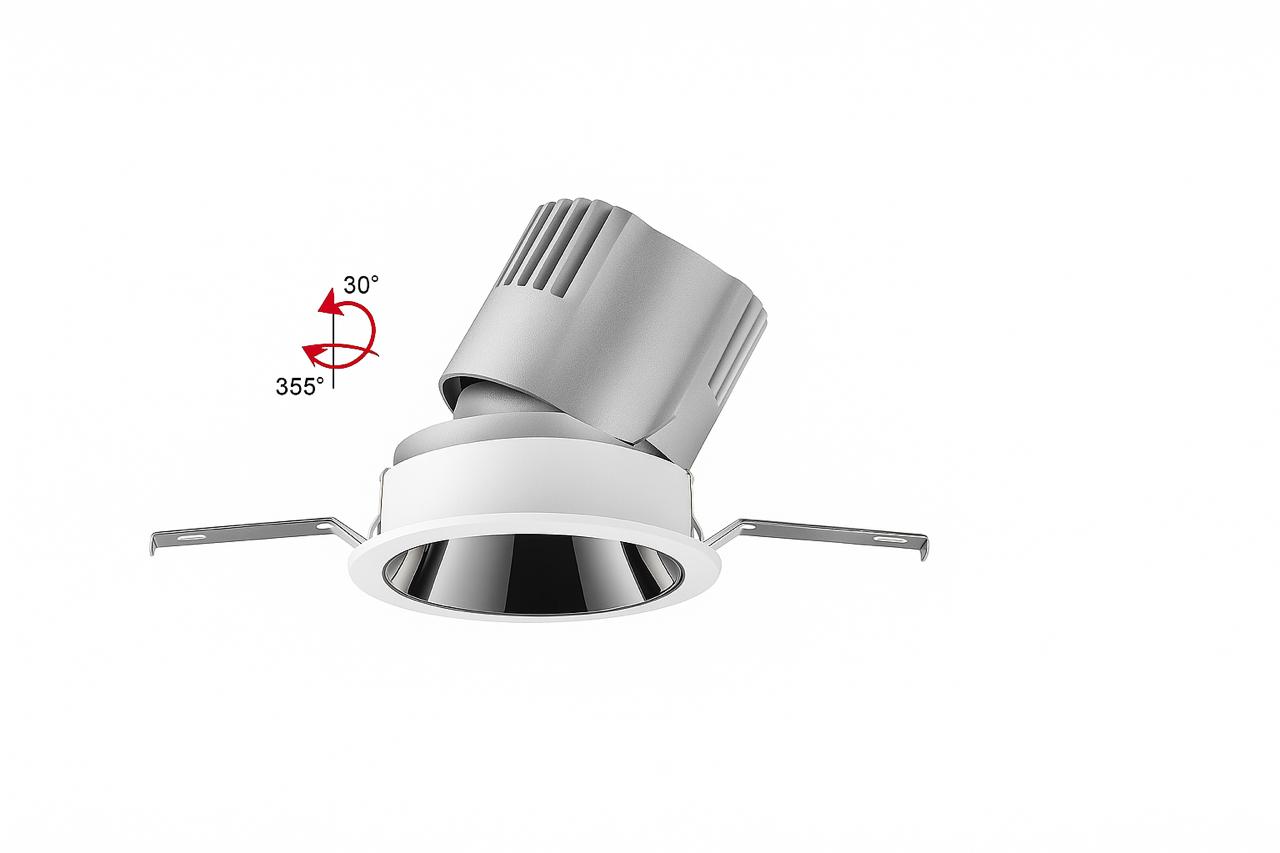

Type: Adjustable
LED: COB
Watt: 5W|10W|20W|30W|50W
CRI: 80|90
CCT: 2700K|3000K|4000K|6000K
Beam: 15°|24°|38°|55°
Lumen: 400lm|800lm|1600lm|2400lm|4000lm
Finish: White
Material: Die cast Aluminum
Driver: External
Warranty: 5 years


LED Brand
ــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــ
Bridgelux/Cree/Luminus/Sanan/Osram/Lumileds/Hongli...


Driver Brand
ــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــ
Lifud/Eaglerise/Osram/Philip/Coie/Kegu..
Non Dimmable
0-10V Dimmable
DALI Dimmable
Triac Dimmable
Model Watt L×W×H(mm)Cutout(mm)
DR3038-5W
 5Wφ62*H75mm  φ55mm
DR3038-T-5W5Wφ77*H75mmφ55mm (Trimless)
DR3038-10W 10Wφ85*H89mm φ75mm
DR3038-T-10W10Wφ100*H89mm φ75mm (Trimless)
DR3038-20W 20Wφ104*H115mmφ95mm
DR3038-T-20W20Wφ120*H115mmφ95mm (Trimless)
DR3038-30W30Wφ140*H149mmφ120mm
DR3038-50W50Wφ168*H179mmφ145mm
DR3038-S-5W5Wφ85*H60mmφ75mm
DR3038-S-T-5W 5Wφ100*H60mmφ75mm (Trimless)
Features and Benefits
Features Icon
Features
DR3038
DR3038
DR3038
