DR3046-TA Trimless
DR3046-TA Trimless
down light spot light
DR3046-TA Trimless
Model: DR3046-TA Trimless

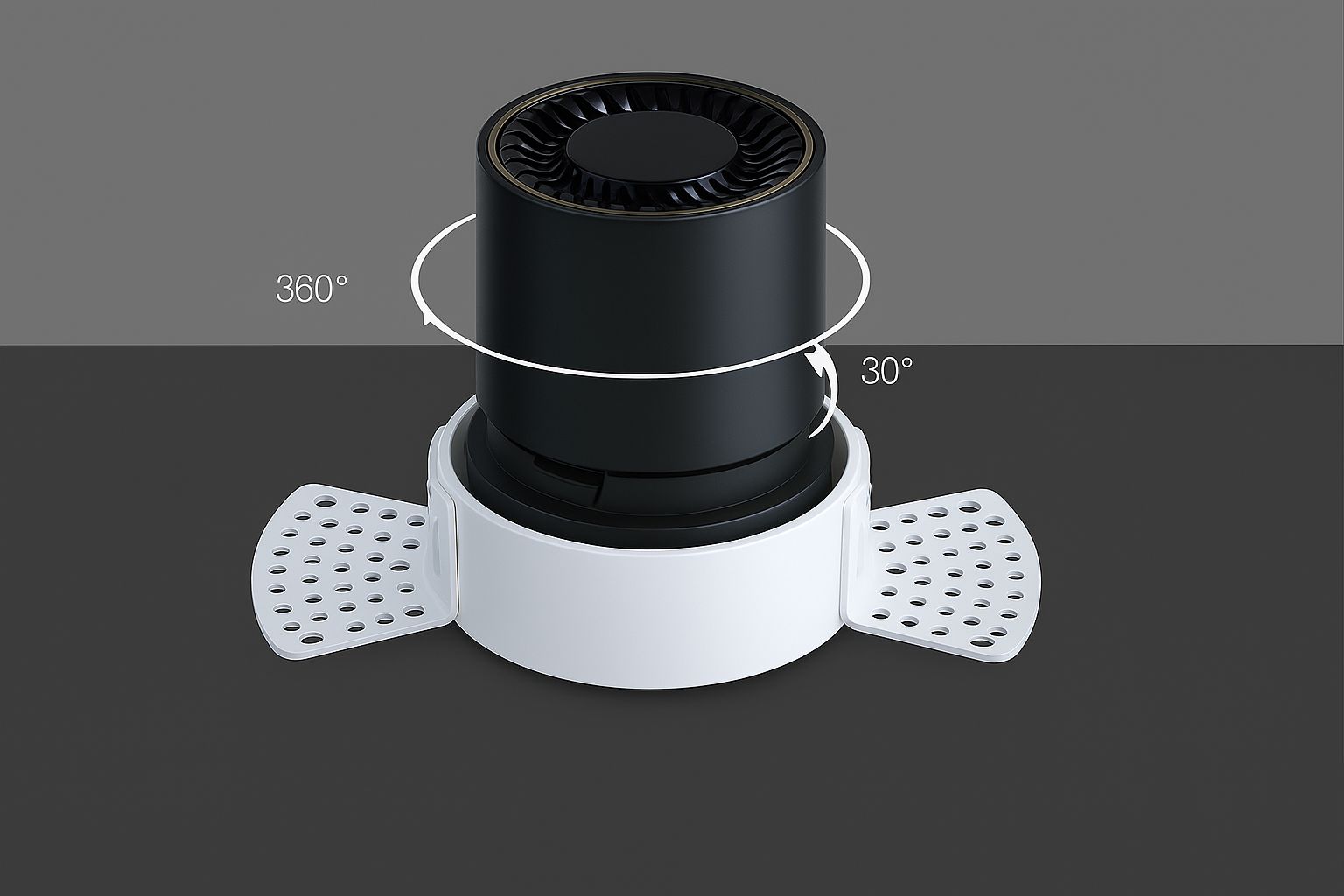

Type: 30° Adjustable|360° Rotation
LED: COB
Optics: Lens|Reflector
Watt: 5W|8W|7W|10W|18W|25W
CRI: 80|90
CCT: 2700K|3000K|4000K|6000K
Beam: 8°|15°|24°|38°|55
Lumen: 4501m|7201m|630lm|1620lm|2250Im
Finish: White + Black
Material: Die cast Aluminum
Driver: External
Warranty: 5 years


LED Brand
ــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــ
Bridgelux/Cree/Luminus/Sanan/Osram/Lumileds/Hongli...


Driver Brand
ــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــ
Lifud/Eaglerise/Osram/Philip/Coie/Kegu..
Non Dimmable
0-10V Dimmable
DALI Dimmable
Triac Dimmable

Model
Watt Size(mm)Cutout(mm)
DR3046-TA-5W5Wφ110*H78φ65
 DR3046-TA-8W8Wφ110*H88φ65
DR3046-TA-7W7Wφ145*H87φ85
DR3046-TA-10W10Wφ145*H90φ85
DR3046-TA-18W18Wφ85*H105φ75
DR3046-TA-18W18Wφ172*H107φ105
DR3046-TA-25W25Wφ172*H117φ105
Features and Benefits
Features Icon
