down light spot light

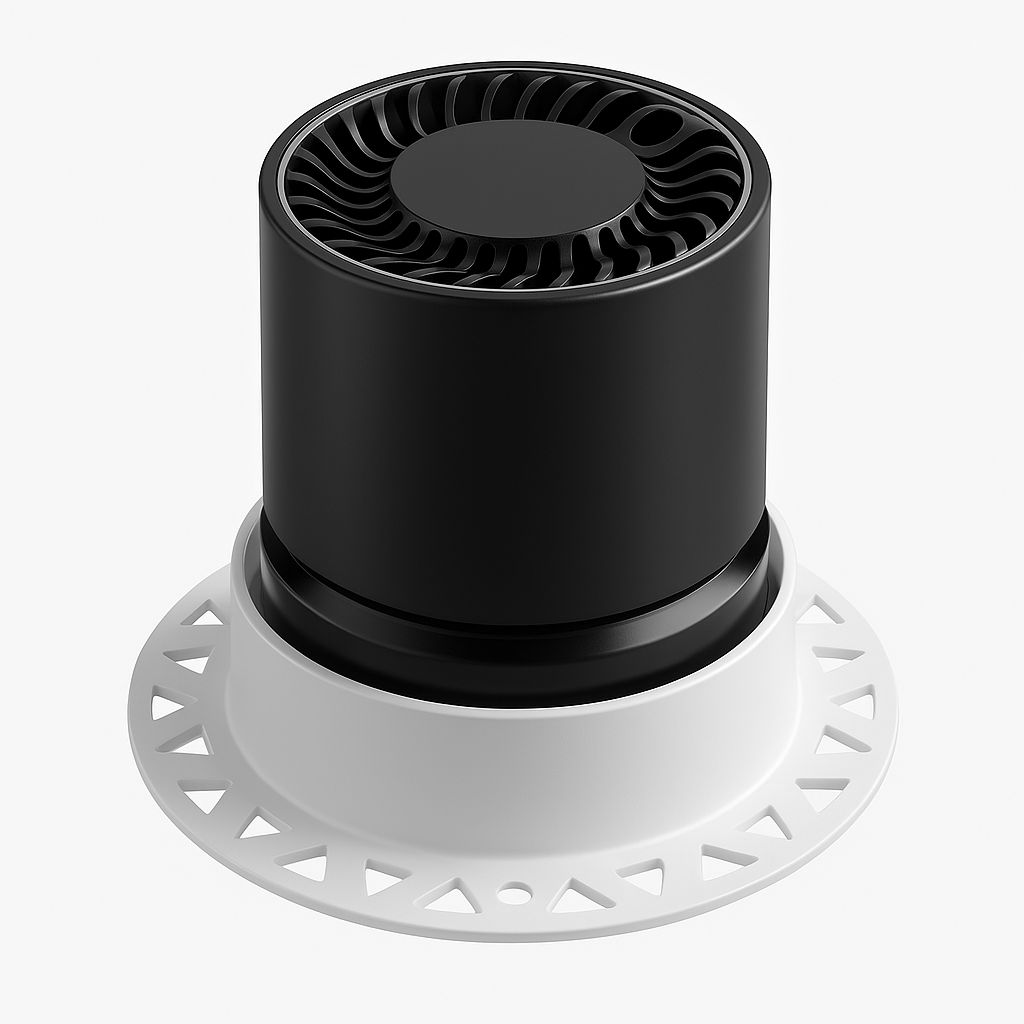

DR3046-T Trimless
DR3046-T Trimless
Model: DR3046-T Trimless
Type: 30° Adjustable|360° Rotation
LED: COB
Optics: Lens| Reflector
Watt: 5W|8W|7W|10W|18W|25W
CRI: 80|90
CCT: 2700K|3000K|4000K|6000K
Beam: 8°|15°|24°38°|55
Lumen: 450lm|7201m|630lm|1620Im|2250lm
Finish: White + Black
Material: Die cast Aluminum
Driver: External
Warranty: 5 years
LED Brand
ـــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــ
Bridgelux/Cree/Luminus/Sanan/Osram/Lumileds/Hongli..
Driver Brand
ـــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــ
Lifud/Eaglerise/Osram/Philip/Coie/Kegu...
Non Dimmable
0-10V Dimmable
DALI Dimmable
Triac Dimmable
Type: 30° Adjustable|360° Rotation
LED: COB
Optics: Lens| Reflector
Watt: 5W|8W|7W|10W|18W|25W
CRI: 80|90
CCT: 2700K|3000K|4000K|6000K
Beam: 8°|15°|24°38°|55
Lumen: 450lm|7201m|630lm|1620Im|2250lm
Finish: White + Black
Material: Die cast Aluminum
Driver: External
Warranty: 5 years
LED Brand
ـــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــ
Bridgelux/Cree/Luminus/Sanan/Osram/Lumileds/Hongli..
Driver Brand
ـــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــــ
Lifud/Eaglerise/Osram/Philip/Coie/Kegu...
Non Dimmable
0-10V Dimmable
DALI Dimmable
Triac Dimmable
Model |
Watt | Size(mm) | Cutout(mm) |
| DR3046-T-5W | 5W | φ74*H78 | φ55 |
| DR3046-T-8W | 8W | φ74*H88 | φ55 |
| DR3046-T-7W | 7W | φ99*H87 | φ75 |
| DR3046-T-10W | 10W | φ99*H90 | φ75 |
| DR3046-T-18W | 18W | φ99*H105 | φ75 |
| DR3046-T-18W | 18W | φ114*H107 | φ95 |
| DR3046-T-25W | 25W | φ114*H117 | φ95 |
Features and Benefits
